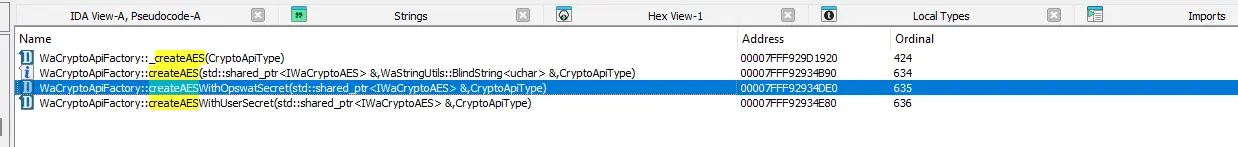

At first, the attacker will use the IDA tool for static analysis. By searching through the export functions of the libwautils.dll module, the attacker can find a function named createAESWithOpswatSecret:

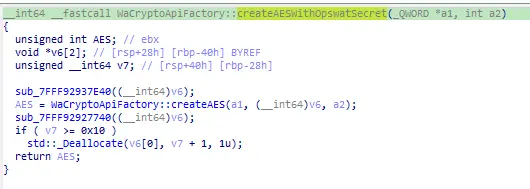

Decompile this function, he has the following pseudo code:

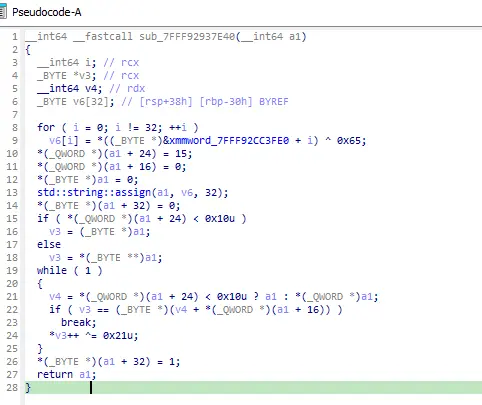

Continue decompiling the sub_7FFF92937E40 function, which is invoked at the beginning of the above function:

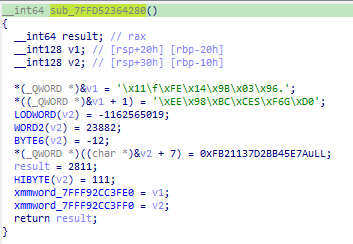

This function does something with xmmword_7FFF92CC3FE0 and by following the references to this value, we found another function named sub_7FFD52364280 that contains some hardcoded values:

At this time, the attacker can conclude that the key is generated from some hardcoded values.

License Encryption

Decrypt license: AES Decrypt - CyberChef

Decrypted license:

{
  "_id": "68c92048c1c57200172d67fe",
  "user_id": "68c92048c1c57200172d67fc",
  "timestamp": "1758091373",
  "offline_mode": true,
  "online_mode": true,
  "pass_key_hashes": {
    "_id": "68c920858c8523c8811826f9",
    "user_id": "68c92048c1c57200172d67fc",
    "timestamp": "1758091373",
    "pass_keys": {
      "c900809cdb059bc0a7c9ad015760aaaafbedcf3557bde6a49366c163446ffb34d9584d415dd4497ed6d5440171cbf6ff4a60744b1f50130da82141fa9e6a7061": "USER",
      "a07253e0fec14e036b19947a4e2d7e8955b117ab68d168543a0c0bb62c62cbecada7344c6ecd3f49c186ba65b3044908c8035960683d4532c22013890f2346d7": "OPSWAT"
    }
  },
  "gears_sdk_detection": {
    "module_name": "detection",
    "enabled": false,
    "expiration": "0"
  },
  "gears_sdk_manageability": {
    "module_name": "manageability",
    "enabled": false,
    "expiration": "0"
  },
  "gears_sdk_vulnerability": {
    "module_name": "vulnerability",
    "enabled": false,
    "expiration": "0"
  },
  "gears_sdk_removal": {
    "module_name": "removal",
    "enabled": false,
    "expiration": "0"
  },
  "modules": [
    {
      "module_name": "v3adapter",
      "enabled": true,
      "expiration": "1769873371"
    },
    {
      "module_name": "detection",
      "enabled": true,
      "expiration": "1769873371"
    },
    {
      "module_name": "infection",
      "enabled": true,
      "expiration": "1769873371"
    },
    {
      "module_name": "appcontrol",
      "enabled": true,
      "expiration": "1769873371"
    },
    {
      "module_name": "netscan",
      "enabled": true,
      "expiration": "1769873371"
    },
    {
      "module_name": "dlp",
      "enabled": true,
      "expiration": "1769873371"
    },
    {
      "module_name": "manageability",
      "enabled": true,
      "expiration": "1769873371"
    },
    {
      "module_name": "multiscan",
      "enabled": true,
      "expiration": "1769873371"
    },
    {
      "module_name": "heuristic",
      "enabled": true,
      "expiration": "1758036571"
    },
    {
      "module_name": "vulnerability",
      "enabled": true,
      "expiration": "1769873371"
    },
    {
      "module_name": "diagnostics",
      "enabled": true,
      "expiration": "1767281371"
    },
    {
      "module_name": "deviceinfo",
      "enabled": true,
      "expiration": "1769873371"
    },
    {
      "module_name": "addon",
      "enabled": true,
      "expiration": "1769873371"
    },
    {
      "module_name": "driver",
      "enabled": true,
      "expiration": "1769873371"
    },
    {
      "module_name": "removal",
      "enabled": true,
      "expiration": "1769873371"
    },
    {
      "module_name": "advancedbrowser",
      "enabled": true,
      "expiration": "1769873371"
    }
  ],
  "user": {
    "_id": "68c92048c1c57200172d67fd",
    "user_id": "68c92048c1c57200172d67fc",
    "timestamp": "1758091373",
    "email": "sdktest@gmail.com",
    "name": "sdk_test_01",
    "password": "nopassword",
    "licensed": true,
    "account_expired": false,
    "account_locked": false,
    "credentials_expired": false,
    "enabled": true,
    "roles": ["ROLE_USER"],
    "notes": "Test only"
  }
}

Forge license: AES Encrypt - CyberChef

RPC Interfaces

Check for RPC interfaces with RPC toolkit from Akamai and found nothing:

{
  "libwaadbrowser.dll": {},
  "libwaaddon.dll": {},
  "libwaapi.dll": {},
  "libwacollector.dll": {},
  "libwadeviceinfo.dll": {},
  "libwadlp.dll": {},
  "libwadriver.dll": {},
  "libwaheap.dll": {},
  "libwainfection.dll": {},
  "libwalocal.dll": {},
  "libwanetscan.dll": {},
  "libwaremoval.dll": {},
  "libwaresource.dll": {},
  "libwautils.dll": {},
  "libwavmodapi.dll": {},
  "OESISEndpointAssessmentTool.exe": {},
  "WaDiagnose.exe": {},
  "WaDiagnose_legacy.exe": {},
  "wa_3rd_party_host_32.exe": {},
  "wa_3rd_party_host_64.exe": {},
  "wa_3rd_party_host_ARM64.exe": {}
}

Named Pipe Messages Encryption

[Window] Encrypt payload between SDK and wa_3rd_party_host - OESIS (Endpoint Security SDK) - Confluence

I used the SDK process ID and 3rd_party, then XORed the two values ​​to get the key. 1/ Convert the number to a string. For example: 46072 → “46072“ 2/ XOR each character of the two strings together. If one string ends, repeat this string, we will repeat this until we can create a 32 byte array. 3/ XOR the array again with 101

Algorithm code:

WAUTIL_RETURN WaCryptoApiFactory::createAESWithTwoNumber(std::shared_ptr<IWaCryptoAES>& aes, wa_int rightNumber, wa_int leftNumber, CryptoApiType type/* = CryptoApiType::Default*/)
{
	WAUTIL_RETURN rc = WAAPI_OK;
	wa_wstring strRight = string_cast<wa_wstring>(rightNumber);
	wa_wstring strLeft = string_cast<wa_wstring>(leftNumber);

	size_t rightSize = strRight.size();
	size_t leftSize = strLeft.size();

	std::array<BYTE, 32> arr = { 0 };
	for (size_t i = 0; i < arr.size(); ++i)
		arr[i] = (BYTE)(strRight[i % rightSize] ^ strLeft[i % leftSize]);

	auto key = runtimeXOR(arr, WA_KEY_XOR);
	return createAES(aes, key, type);
}

Resources

BCrypt

DLL Hijacking

COM Hijacking COM

Để ngăn ngừa COM Hijacking:

  • Check signature của DLL
  • Sử dụng đường dẫn tuyệt đối nếu được

Named Pipe Impersonation named-pipe privilege-escalation
